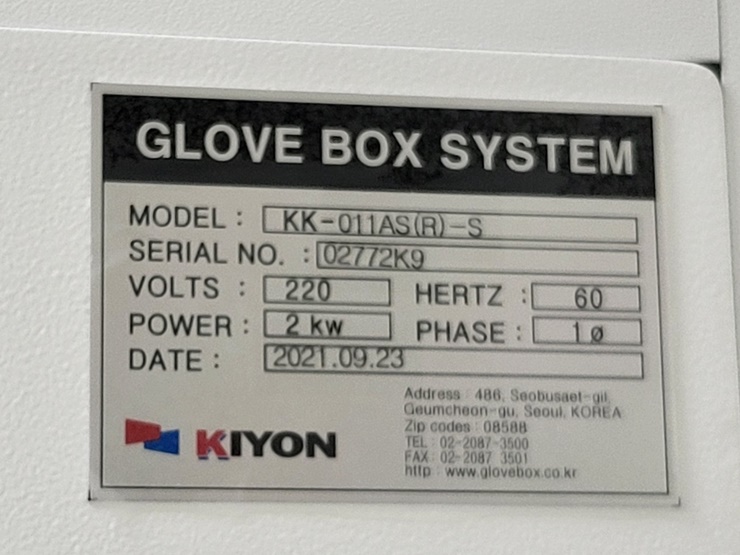

. Model : KK011AS-S
. 미사용품 ( 구입후 사용하지않음 / 연구개발방식의 변환으로 미사용 )

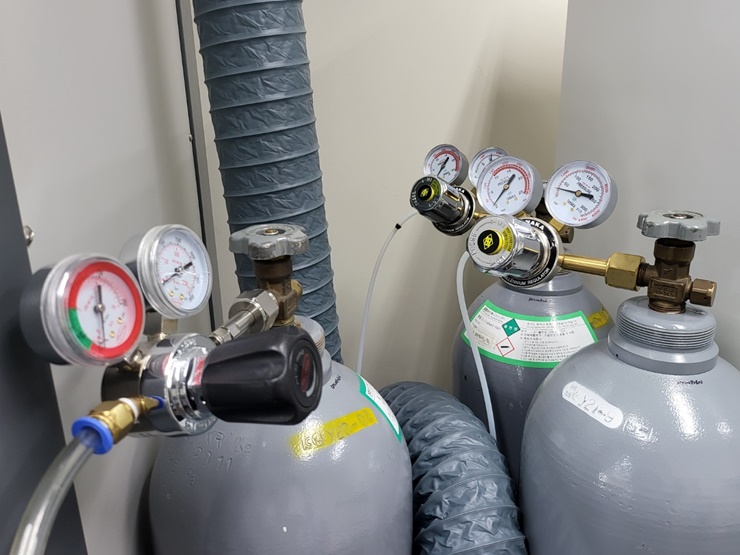

. 가스통제외 ( 레귤레이터 포함) / 박스내부의 스핀코터 제외

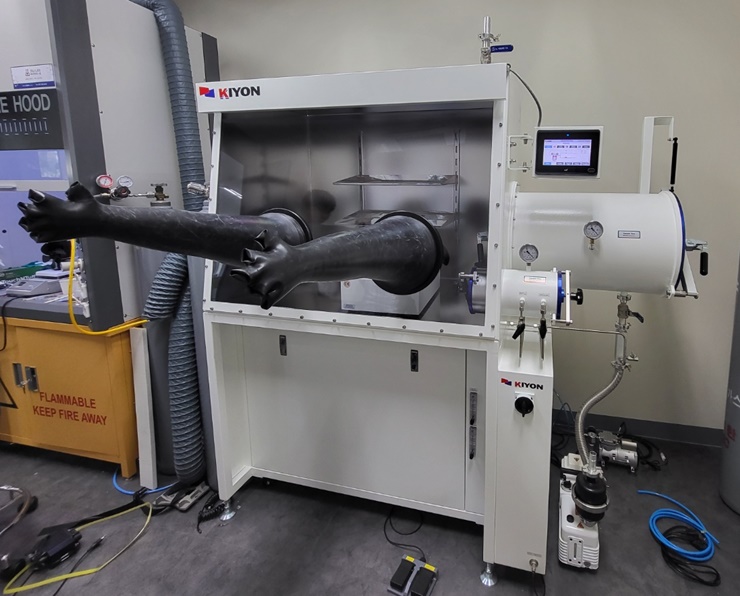

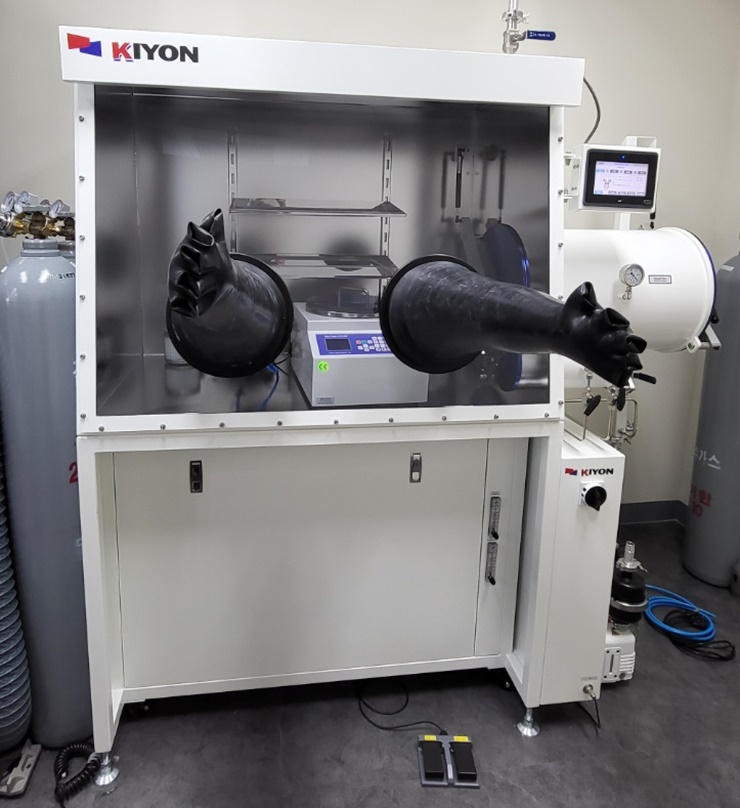

1. Hermetically Sealed Module (One Workstation) : 1 set
- Single sided and Single (2 port) length: 1,200(L) X 900(H) X 780mm(D)
- Modular structure with elastomer gasket front panel -
Material : 304 Stainless Steel, Main body : 3mm thick
- Side end panel : 3mm thick, 0.3 micron filter : 2 ea
- Fluorescent Skylight, 9" Glove Port (M/C) : 2 ea,
Butyl Rubber Glove (8" dia.) : 1pair
- Window :Scratch & High impact resistant, Optically clear polycarbonate
- Electrical Outlet : Two duplex (220V), Glove Port cover :
Protect atmosphere during glove replacement
- Service port feedthru : NW40(2ea), 3/8"(1ea),1/4"(1ea)
- Shelves : 2ea

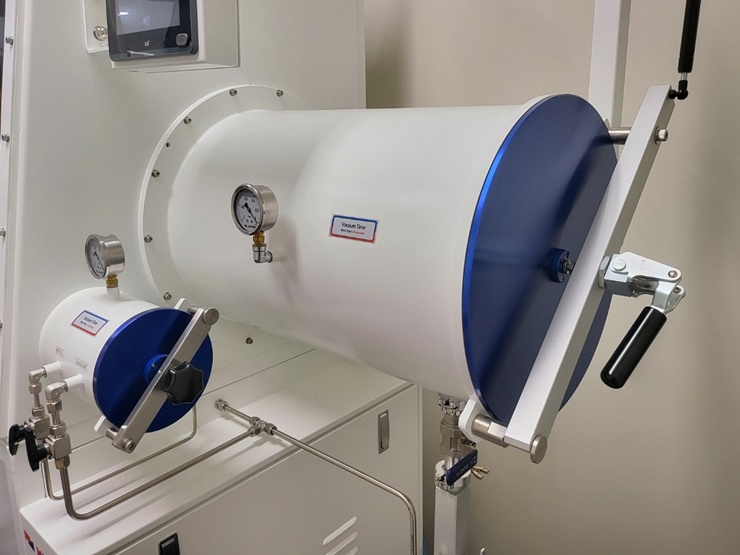

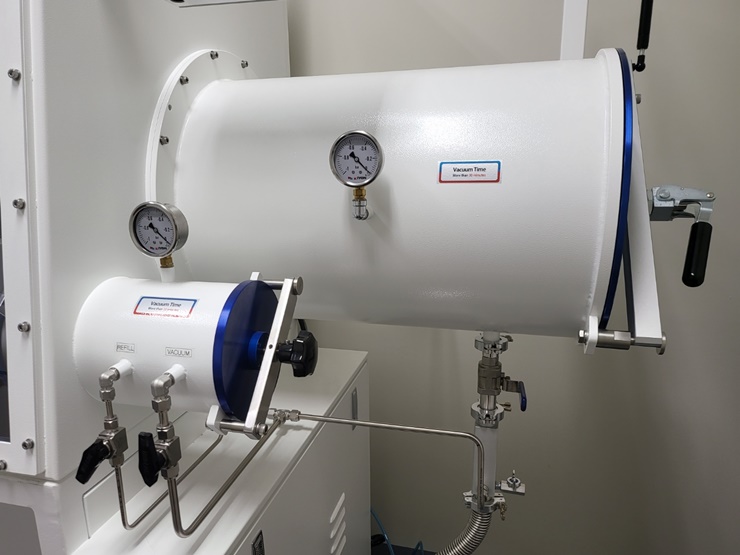

2. Antechamber : 1 set
- This chamber will be installed Right side of glove box
- Size : 390 dia. x 600 mm length, High vacuum design,
O-ring sealed, Sliding Shelf
- Material : 304 Stainless Steel -
Vacuum capacity : 1 x 10-3 torr, Doors, vertical action
- Vacuum gauge : Bourdon tube dial type
- Connection : 3/8" Refill solenoid valve

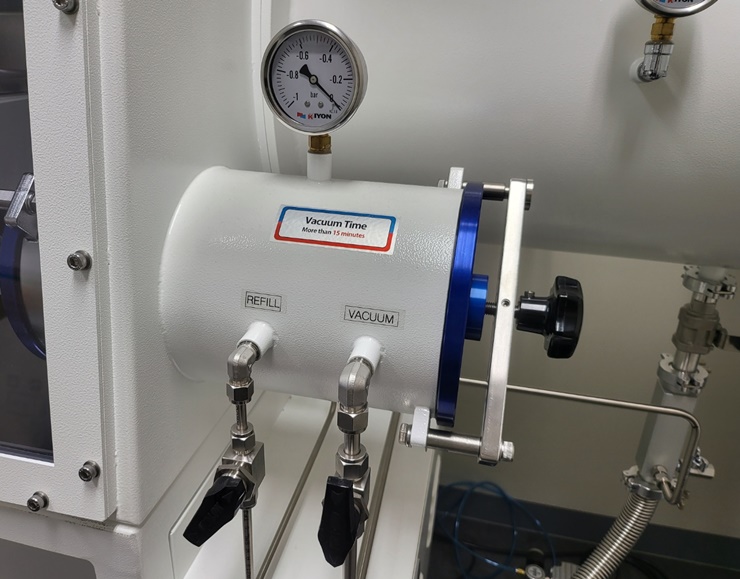

3. Mini Antechamber : 1 set
- 150mm (dia.) x 290mm (Length), Doors : Single center Knob Type, O-ring
- Material : 304 Stainless Steel - Gauge : Broudon tube dial type,
Vacuum capacity : 1 x 10-3 torr
- Connection : 1/4" Manual refill Ball valve

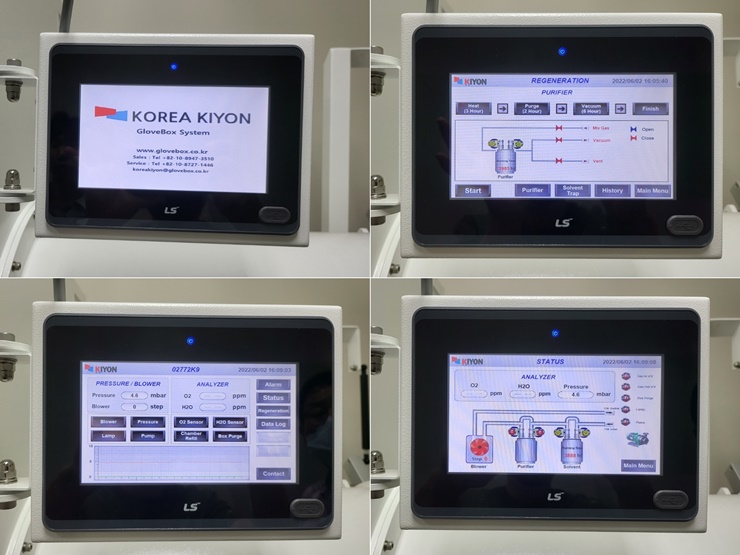

4. Automatic Pressure Controller (7" Full Color Touch Panel, Folding Type) :
1 set
- Pressure Range : -12.5 to 12.5 mbar, Limits easily adjustable
- Manual foot switch operate.
- Two solenoid valves are operated.

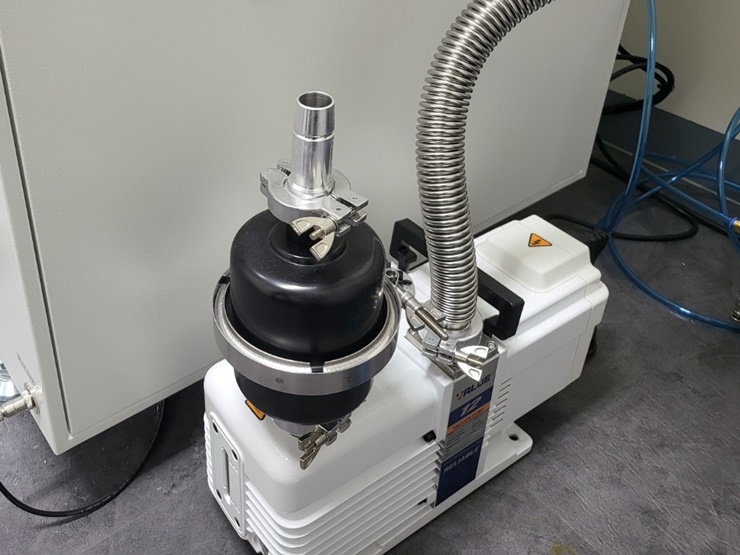

- 1 set of Vacuum Pump Intake Type : NW25. Ultimate pressure :
5 x 10-4 torr
- Two Stage, Power 220V, 1 Phase

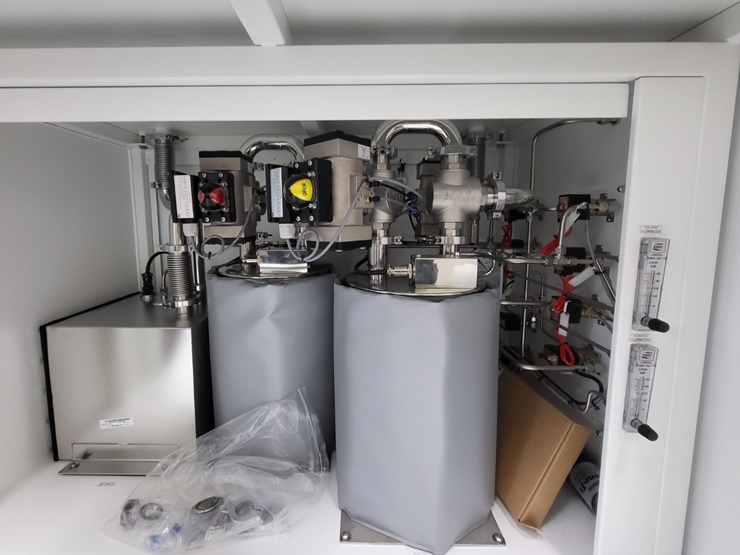

5. Purification System : 1 set
- Automatic atmosphere reduction control for 1 ppm atmosphere
- Oxygen/Moisture removal to less than 1 ppm, Control :
PLC type (Heat, Vacuum, Purge, Refill : 13 hours)
- Pneumatic valve for Regeneration, Circulation Blower :
63CFM (Variable Speed Control)
- Purifier : 1 set (Single Column Purifier),
Purifier Charger Capacity(Molecular sieve & Copper Oxide)
6. Support Stand
- 1,200(L) x 936(H) x 780(D)mm
- Material : SS400 (Steel), Painting : C9010 MR WHITE, Caster
* Optional Accessories *
7. Moisture Analyzer
- Accuracy : ± 2℃
- Repeatability ± 0.5℃
- Resolution : 0.1℃ or 0.1 ppm
- Out Put : 4-20mA DC. Max. Load Max 250 Ω
- Measurement range : 0 ~ 1,000 ppm
- Operating Temperature : -40 to +60℃
- Operating Pressure : 45 MPa (450 barg / 6500 psig) max
8. Oxygen Analyzer
- Measurement system : Zirconia Oxygen concentration cell
- Measurement range : 0 to 1000ppm
- Linearity : +/- 2% of reading
- Humidity : 0-95% RH non-condensing
- Response time (T90) : <10 seconds @ 25˚C (within selected range)
- Combined Sensor & Electronics allows for ease of integration
9. Solvent Trap (Chemical Type)
- This trap will be installed inside support stand of glove box
- Special design plumbing & Chemical filter
- Pneumatic isolation valves and bypass valve & NW40 clamping
- Automatic PLC type regeneration process
