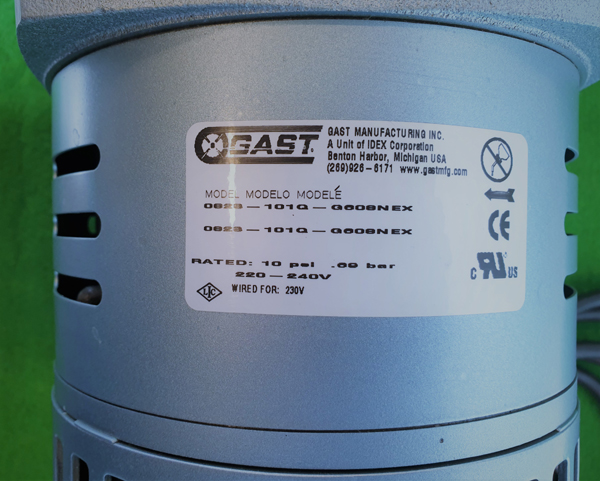

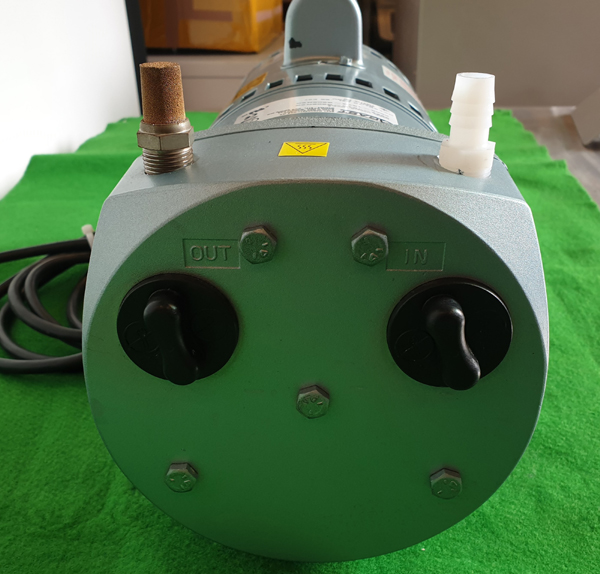

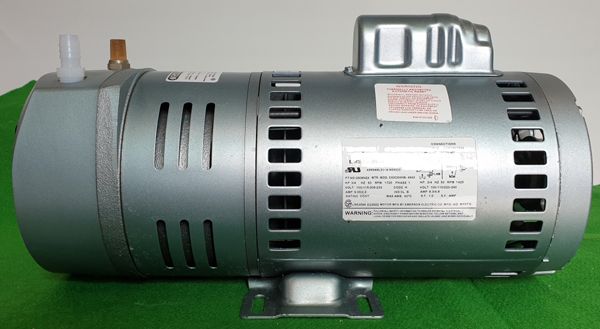

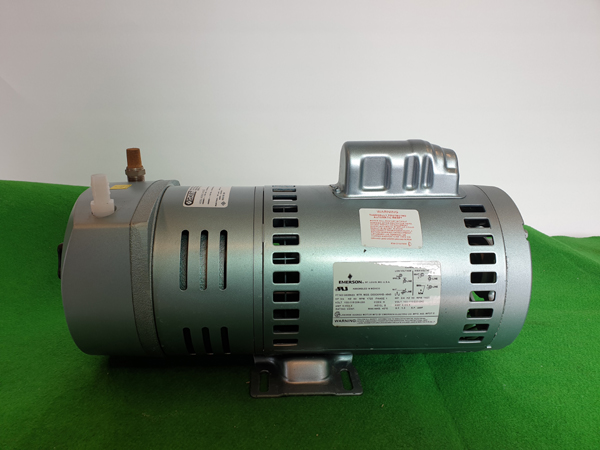

. Model : 0823
. Condition : Used(AAA+)
. 특징 : 진공도 정상,현제 시판 모델입니다.
The easy to install, rugged 0823 allows for higher vacuum levels and provides
better internal corrosion protection and longer life. Their internal sound
suppression results in lower operating noise levels, which makes them well
suited for noise sensitive environments like medical, dental and laboratory
applications. In addition, these compact units offer high flow, pulse free
air– making them ideal for applications requiring consistent air pressure and
air flow.
Thermal Protection
The thermal over load protection protects motor windings from damage
should the pump become stalled during operation. (AC models)
Low Maintenance
Vanes and filters are easily serviceable to extend the life of the product and maximize uptime.
SPECIFICATION
- Power : 3/4 hp ( 0.56 kW )
- Max Flow (50 Hz) : 6.5 cfm ( 11.0 m3/h )
- Max Flow (60 Hz) : 8.0 cfm ( 13.6 m3/h )
- Max Pressure (50 Hz) : 10 psi ( 0.7 bar )
- Max Pressure (60 Hz) : 10 psi ( 0.7 bar )
- Max Vacuum (60 Hz) : 26.5 in-Hg ( 116.0 mbar abs )
- Weight : 47 lbs ( 21 kg )
- Min Temperature : 33.8 °F ( 1 °C )
- Max Temperature : 104 °F ( 40 °C )
