바이오 장비 전문점 컨비젼에서 제공하는
가스 크로마토 그래피

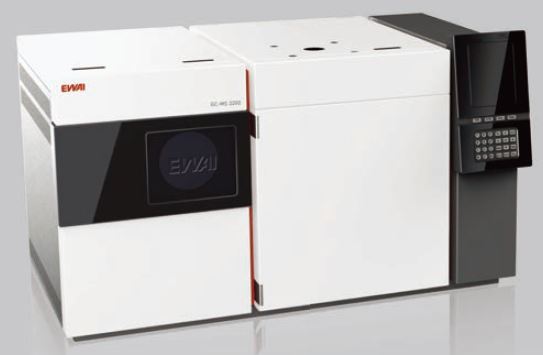

(Gas Chromatograph – Mass Spectrometer (Quadrupole) GC-MS 3200) 입니다. (신제품)
Model : GC- MS 3200
1. Gas Chromatograph：GC-4100 main machine
Capillary / split / splitless
Automatic back door open
Overheating protection
14-ramp temperature control
GC-MS joint for capillary with temperature control
Large LCD display
Carrier gas low pressure protection
Automatic gas route control (EPC)
Constant pressure or constant gas flow rate mode
2. MS System
EI Ionization Source（Standard)
Quadrupole mass filter：Mass Range（1.5～1024）amu
Electron Multiplier（0～3KV)
Filaments control mode
Electron energy: 5-150eV adjustable
Emmission current: 10-350μA adjustable
Turbomolecular pump 250 L/s
Mechanical pump 3 L/s
High and low vaccumn gauge
MS tunning control unit
Standard tunning sample（PFTBA）
3. Software, Data Board (NIST Library, Wiley Library compatible)
4. One capippary column
EquityTM-5 30m x 0.25m x 0.25m
or DB-5MS 30m x 0.25m x 0.25m
* High purity Helium is needed (purity:99.999%)... 별도 구매
옵션 항목
AS-2912 Auto Sampler 16 position (\8,800,000)
AS-2902 Auto Sampler 15 position (\17,600,000)
AS-2902 Auto Sampler 110 position (\18,150,000)
Headspcae Sampler
EW-2HS Headspace Sampler (40-200℃, 10 sample positions).....\8,580,000
HS-3 Headspace Sampler (automated, 40-200℃, 12sample positions)...\33,000,000
NIST Library....\11,000,000
