바이오 장비 전문점 컨비젼에서 제공하는 고성능 액체 크로마토 그래피(HPLC) 입니다. (신제품)

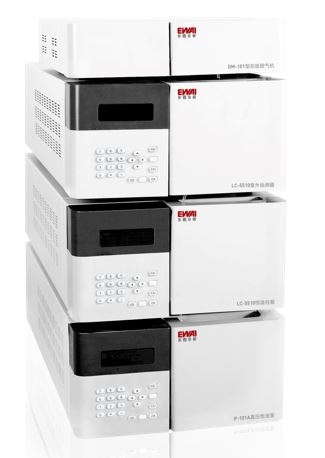

Model : LC-5510 (Dual Pump type)
Automatic wavelength selection and automatic control of column oven temperature
Flow range: 0.001-15.000mL/min
Wavelength range: 190～700 nm
Wavelength accuracy: ±0.2nm
Cell volume: 5μL;
Bandwidth: 5nm
Detection limit: 4×10-8g/mL (naphthalene)
Optical path of analysis cell:16mm
구성품
UV-Vis detector
6-way valve
P-101A high pressure pump:
dual plungers reciprocating,
working pressure 0～42 Mpa,
flow range 0.001-15.000 mL/min, RSD<0.1％
Thermostatic column oven:
semiconductor chilling ＋5℃～80℃,
temperature accuracy ±0.1℃,
2 columns can be intalled simutaneously (compatible with 15, 20, 25 or 30cm length columns)
Precolumn: φ4.6mm×10mm
C18 column: φ4.6mm×250mm
Spare parts kit
Software
옵션 항목

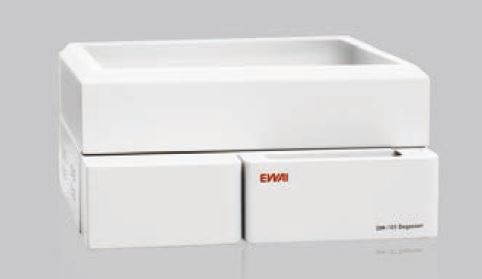

DM-101 online degasser(\4,290,000)
Dual Channal,automatic, high efficiency,ensure low noise base line and no drift

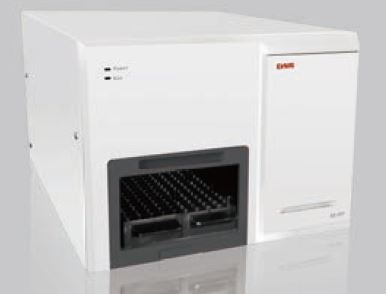

AS-401 autosampler (\14,300,000)
60 sample positions (1.8mL vials) 2 groups,
sampling repeatability <0.3％RSD, CV<0.01％,
sampling volumn 0.1μL～100μL,
no limitation of sampling times
